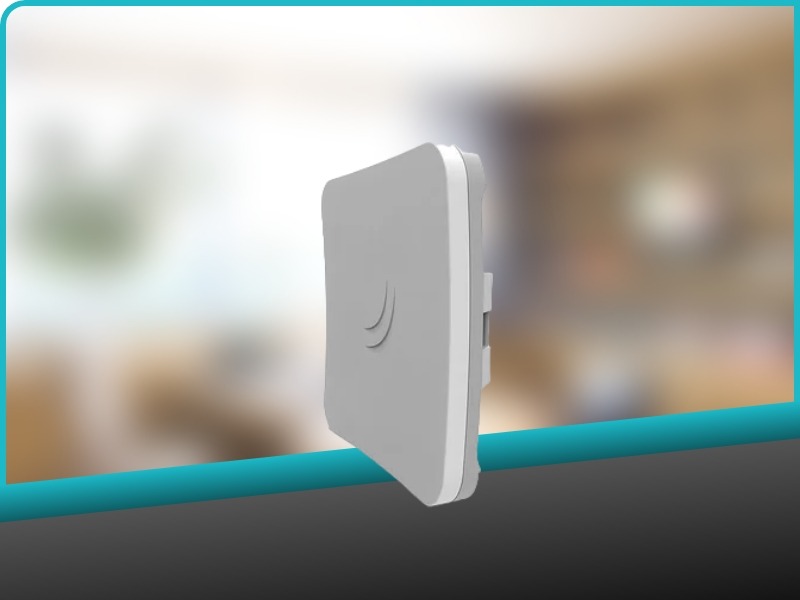

MikroTik SXTsq Lite5

MikroTik SXTsq Lite5

Low-cost, small-size, dual-chain integrated CPE/Backbone with 16dBi at 5GHz.

The SXTsq Lite5 is an outdoor wireless device with an integrated antenna that is small and lightweight. Ideal for up to 12 km point-to-point links or as a CPE unit. It is small, weatherproof, and simple to install. The SXTsq Lite5 keeps the same 16dBi antenna as the SXT Lite5, but the antenna design has been enhanced and the physical size has been considerably reduced - the SXTsq is two times thinner (see photos for comparison).

MikroTik SXTsq Lite5

The device can be put on horizontal and vertical poles and masts, but for accurate alignment, an additional QuickMount Pro is offered, which allows for adjustments at any angle (see photo and related product).

  • The SXTsq Lite5-US (USA) is manufacturer locked to the frequencies 5170-5250MHz and 5725-5835MHz. This lock cannot be broken.
  • SXTsq Lite5 (International) supports the frequency range 5150MHz-5875MHz (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code RBSXTsq5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 129x129x34mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price

Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W

Wireless

Details
Antenna gain dBi for 5 GHz 16
Wireless 5 GHz standards 802.11a/n
Wi-Fi generation 4
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz chip model AR9344

Ethernet

Details
10/100 Ethernet ports 1

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75
