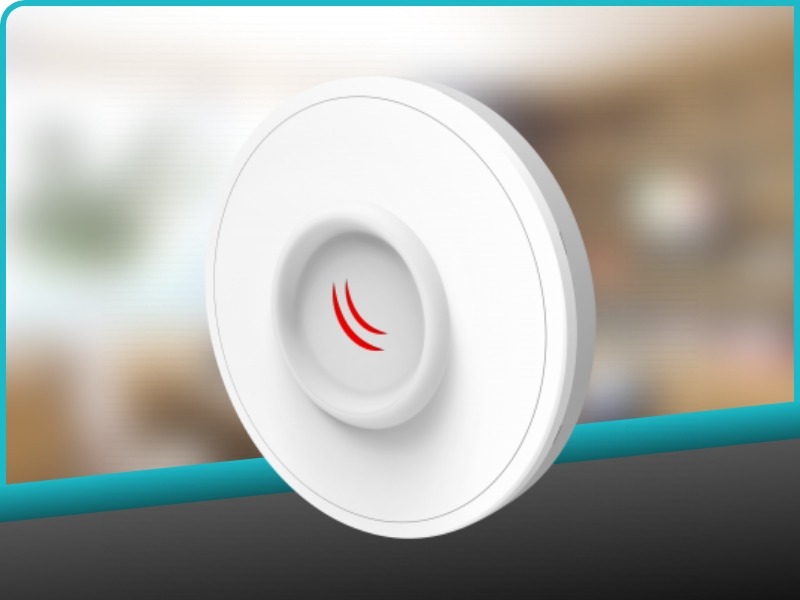

The DISC Lite5 is a 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet connector, and RouterOS L3 pre-installed. The DISC employs a backfire antenna, allowing it to achieve 21dBi gain in such a low-cost and compact form.
| Details | |
|---|---|
| Product code | RBDisc-5nD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | ? 265mm, height: 80mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 21 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 5 | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
