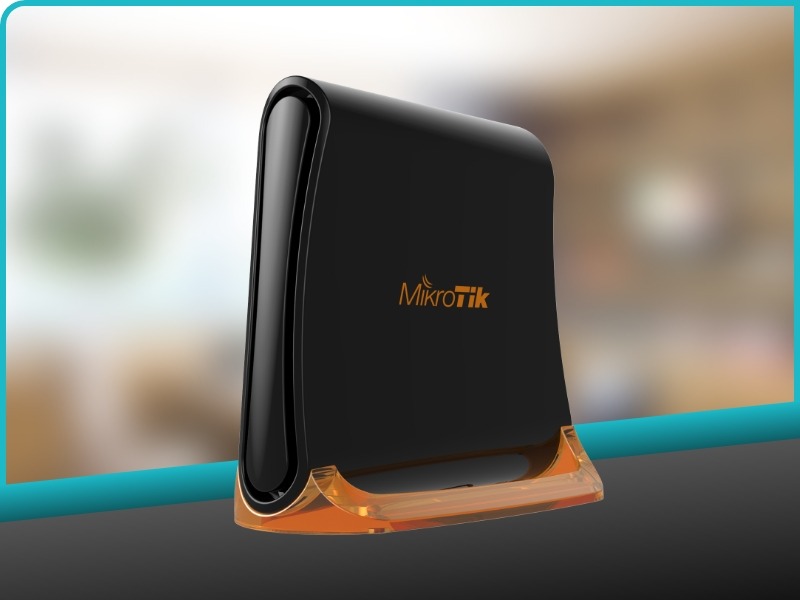

Mikrotik RB931-2nD

The hAP mini is a compact 2GHz wireless access point designed for use in the home or small office. It contains three ports, which are set up as one Internet port and two LAN ports by default but may be modified using the extensive RouterOS configuration tools.

The strong 650MHz CPU offers you full access to the versatile RouterOS operating system's extensive range of functions, but if all you require is a simple access point, it is completely set out of the box. You only need to access its web settings page and enter a password.

Mikrotik RB931-2nD

Specifications

Details
Product codeRB931-2nD
ArchitectureSMIPS
CPUQCA9533
CPU core count1
CPU nominal frequency650 MHz
Dimensions48 x 78 x 81mm
License level4
Operating SystemRouterOS
Size of RAM32 MB
Storage size16 MB
Storage typeFLASH
Tested ambient temperature-20°C to 70°C
Suggested price

Powering

Details
MicroUSB input Voltage5-5 V
Number of DC inputs1 (MicroUSB)
Max power consumption3.5 W

Wireless

Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9533
Wireless 2.4 GHz generationWi-Fi 4

Ethernet

10/100 Ethernet ports3

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71
