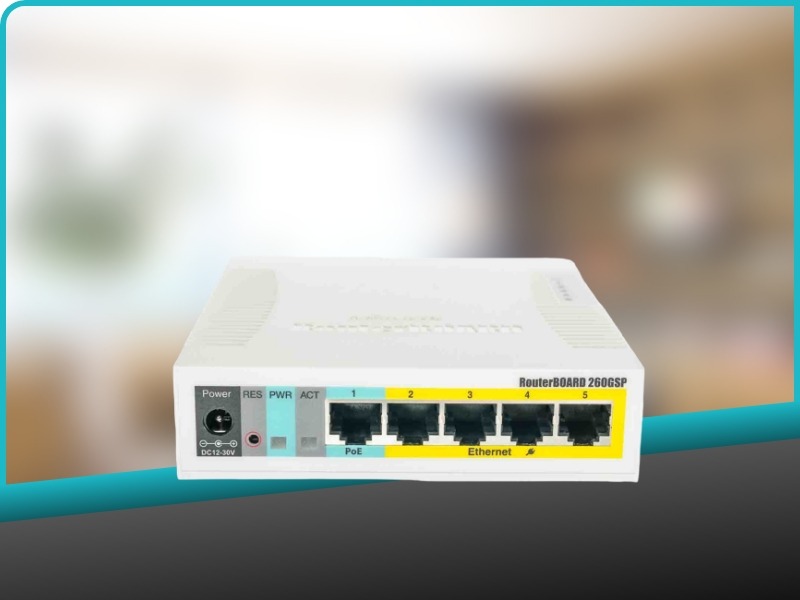

The RB260GSP is a compact SOHO switch with power output on all of its ethernet ports. Ports 2-5 can supply power to additional PoE-compatible devices using the same voltage as the unit (passive PoE over datalines only). An Atheros Switch Chip handles switching on the RB260GSP's five Gigabit Ethernet ports and one SFP cage. SwOS, an operating system created particularly for MikroTik Switch devices, is running on the device.
| Details | |
|---|---|
| Product code | CSS106-1G-4P-1S |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether2-Ether5 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
