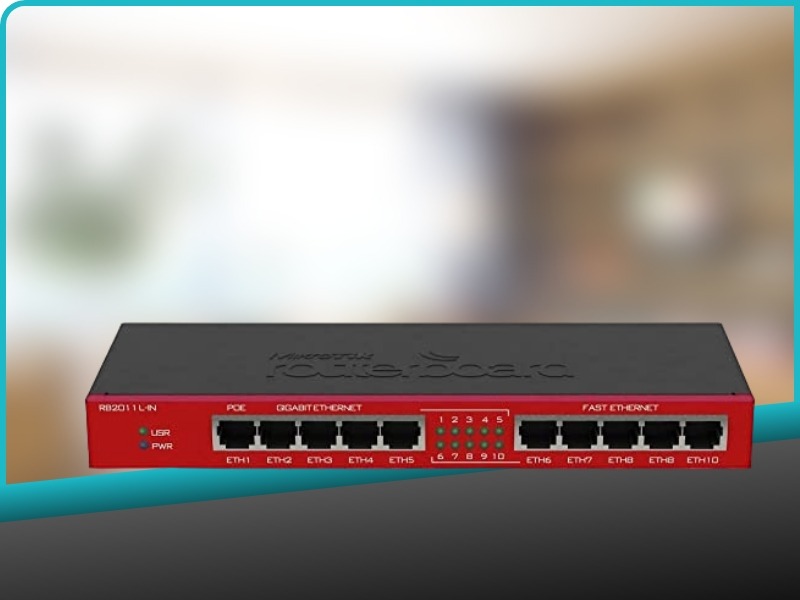

MikroTik RB2011iLS

MikroTik RB2011iLS

The RB2011iLS contains 11 ports, including a Gigabit SFP cage, five Gigabit Ethernet ports that may be switched together to provide an economical wire-speed Fiber-to-Copper converter, and five Fast Ethernet ports. The board can be powered through a power jack or via PoE.

It should be noted that the SFP transceiver is NOT included. RB2011iLS supports any 1.25G SFP transceiver that meets the SFF Committee's SFP Transceiver standards. PON hardware support is not available on the RB2011LS (Passive Optical Network).

MikroTik RB2011iLS

S-85DLC05D, S-31DLC20D, and S-35/53LC20D MikroTik SFP modules have been tested and recommended for use (not included)

It has a Level 4 RouterOS license and is powered by the new Athero’s next-generation 600MHz 74K MIPS network processor.

Port #10 has a PoE output function that can power additional PoE-equipped devices with the same voltage as the unit. The port's maximum load is 500mA.

RouterBOARD 2011iLS-IN has a desktop enclosure as well as a power supply.

As an optional extra, a network closet wall mount kit is available for purchase.

Specifications

Details
Product code RB2011iLS-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 214mmx86mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -35C to +65C
Suggested price

Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE out Passive PoE
PoE-out ports Ether10
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 8-30 V
Max out per port output (input < 30 V) 510 mA
Max total out (A) 510 mA
Max power consumption 18 W
Max power consumption without attachments 6 W

Ethernet

Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5

Fiber

Details
SFP DDMI Yes
SFP ports 1
