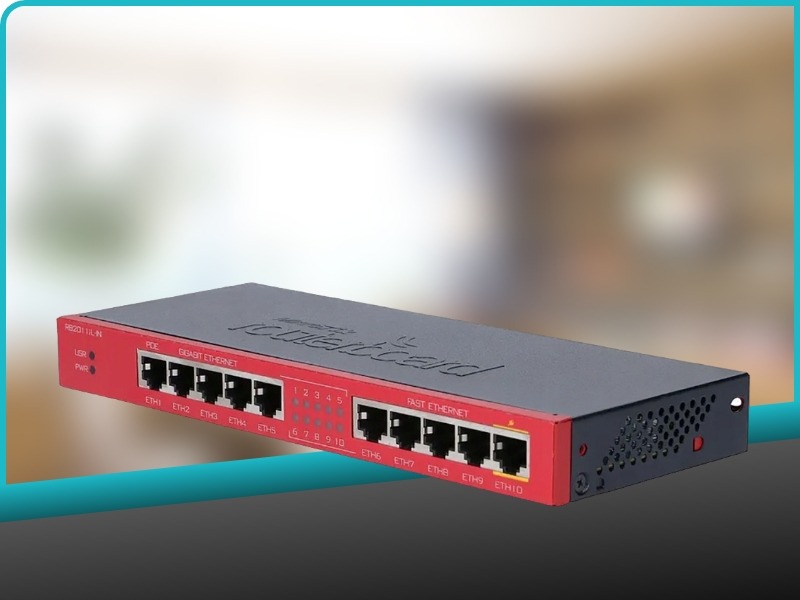

MikroTik RB2011iL-IN

The most basic variant is the RB2011iL-IN, which has five Gigabit Ethernet ports, five Fast Ethernet ports, a power connection, and PoE capability.

It has a Level 4 RouterOS license and is powered by the new Athero’s next-generation 600MHz 74K MIPS network processor.

Port #10 has a PoE output function that can power additional PoE-equipped devices with the same voltage as the unit. The port's maximum load is 500mA.

The RouterBOARD 2011iL-IN includes a desktop enclosure and a power supply.

As an optional extra, a network closet wall mount kit is available for purchase.

MikroTik RB2011iL-IN

Specifications

Details
Product code RB2011iL-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 228x97x25mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -35C to +65C
Suggested price

Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE out Passive PoE
PoE-out ports Ether10
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 18 W
Max power consumption without attachments 6 W

Ethernet

Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5
