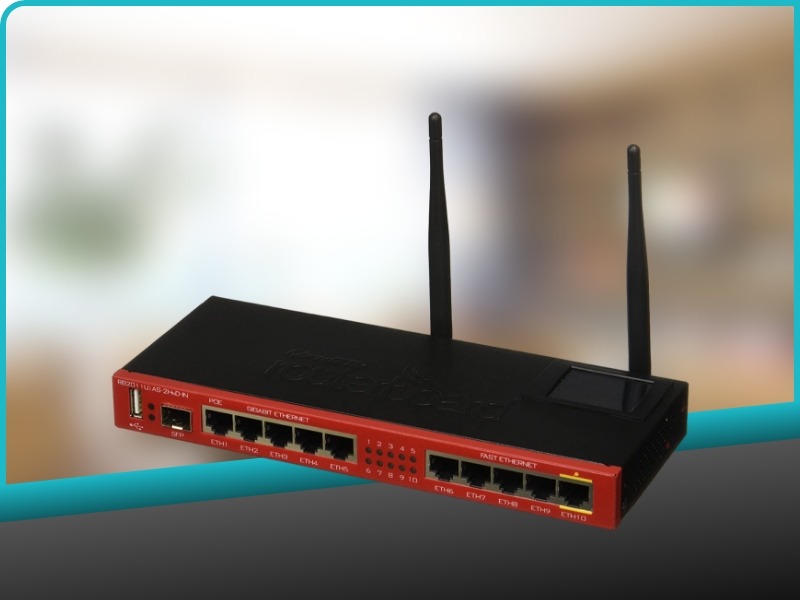

MikroTik RB2011

MikroTik RB2011

The RB2011 device series is a low-cost multi-port device series. Designed for indoor use and is available in a variety of casings with a variety of configurations.

RouterOS, a fully complete routing operating system that has been continuously enhanced for fifteen years, powers the RB2011. RouterOS supports a wide range of capabilities, including dynamic routing, hotspots, firewalls, MPLS, VPN, enhanced quality of service, load balancing and bonding, and real-time configuration and monitoring.

MikroTik RB2011

In comparison to the RB2011L series, the RouterBOARD 2011UiAS-IN features five Gigabit LAN ports and five Fast Ethernet LAN ports, as well as an RJ45 serial connector, a USB port, and additional RAM (128MB instead of 64MB). It also features a RouterOS L5 license (rather than L4) and a beautiful touchscreen LCD for configuration. There is also an SFP cage (SFP module not included!)

S-85DLC05D, S-31DLC20D, and S-35/53LC20D MikroTik SFP modules have been tested and recommended for use (not included)

Port #10 has a PoE output function that can power additional PoE-equipped devices with the same voltage as the unit. The port's maximum load is 500mA.

The RouterBOARD 2011UiAS-IN has a desktop container, an LCD display, and a power supply.

As an optional accessory, a network closet wall mount kit (product code RBWMK) is offered.

Specifications

Details
Product code RB2011UiAS-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 214mm x 86mm for PCB
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C
Suggested price

Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE out Passive PoE
PoE-out ports Ether10
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max out per port output (input < 30 V) 510 mA
Max total out (A) 510 mA
Max power consumption 6 W

Ethernet

Details
10/100 Ethernet ports 5

Fiber

Details
SFP DDMI Yes
SFP ports 1

Peripherals

Details
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 2

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
