MikroTik QRT 5 ac

MikroTik QRT 5 ac

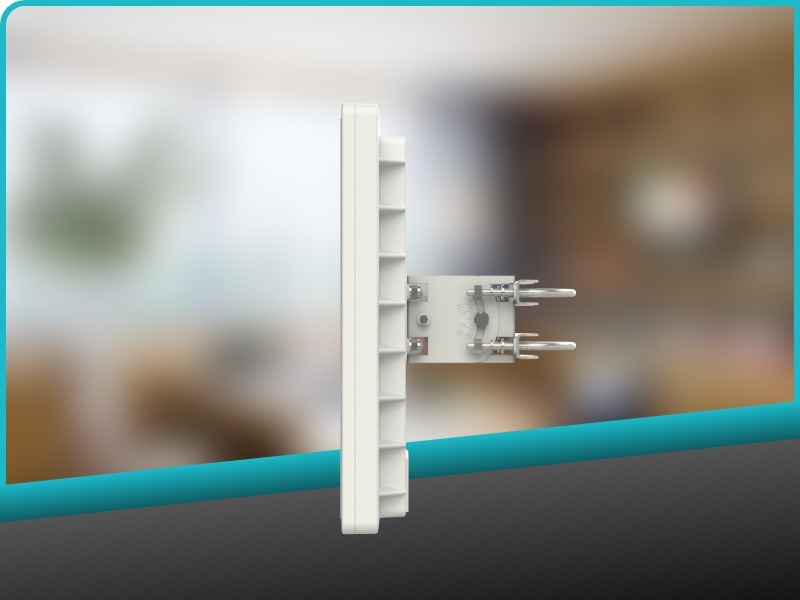

The QRT 5 ac is a tough outdoor flat panel antenna with a RouterBOARD integrated. The gadget features a 24dBi antenna and a high-power 5GHz wireless transmitter that now supports 802.11ac while remaining backward compatible with 802.11a/n.

The high-power RB911G-5HPacD twin-chain wireless device (see separate brochure) is housed inside, together with a high-performance, high-output power wireless transmitter. It contains a Gigabit Ethernet port for taking full advantage of the benefits of 802.11ac high-speed wifi.

MikroTik QRT 5 ac

QRT is suited for longer point-to-point links at 802.11ac speeds since it is simple to use and deploy.

  • The QRT 5 ac-US (USA) is factory locked to frequencies 5170-5250MHz and 5725-5835MHz. This lock cannot be broken.
  • The 5150MHz-5875MHz frequency range is supported by QRT 5 ac (International) (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code RB911G-5HPacD-QRT
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 309x320x50mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price

Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 10.5 W

Wireless

Details
Antenna gain dBi for 5 GHz 24
Wireless 5 GHz standards 802.11a/n/ac
Wi-Fi generation 5
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz chip model QCA9882

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

5 Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72
