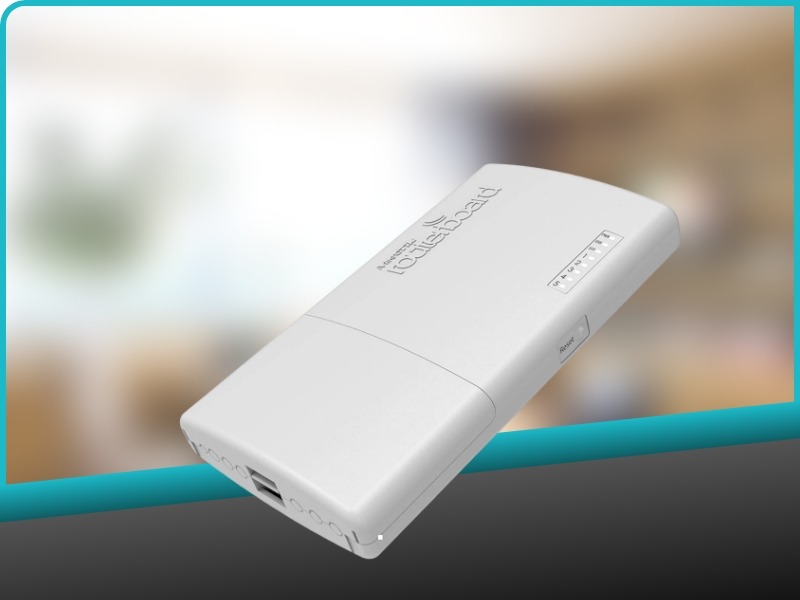

MikroTik PowerBox Pro

MikroTik PowerBox Pro

It also supports passive PoE input and output (802.3af/at). Ethernet ports 2-5 can supply power to additional PoE capable devices using the same voltage as the unit. There are fewer power adapters and cords to worry about! If the input voltage is between 48 and 57 volts, it can power 802.3at and af mode B compliant devices.

The gadget includes an SFP connection for optical fiber connectivity. It is inexpensive, tiny, and simple to operate, but it also has a very powerful 800MHz CPU capable of all the sophisticated setups that RouterOS allows.

MikroTik PowerBox Pro

Specifications

Details
Product code RB960PGS-PB
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 125 x 52 x 225 mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price

Powering

Details
PoE in Passive PoE
PoE in input Voltage 12-57 V
PoE out 802.3af/at
PoE-out ports Ether2-Ether5
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 450 mA
Max out per port output (input < 30 V) 1 A
Max total out (A) 2 A
Max power consumption 54 W
Max power consumption without attachments 6 W

Ethernet

Details
10/100/1000 Ethernet ports 5

Fiber

Details
SFP ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
