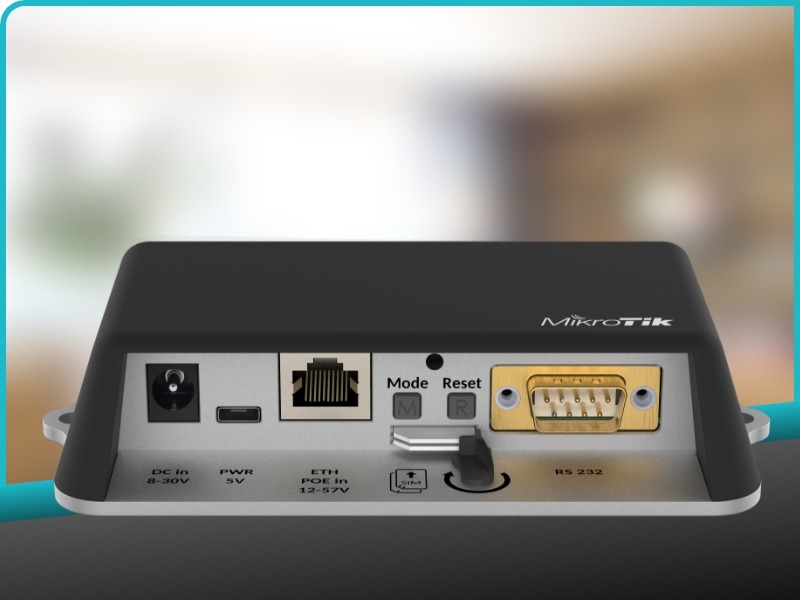

MikroTik LtAP mini LTE kit

Small weatherproof wireless access point equipped with an International LTE modem, two SIM slots, and GPS.

The LtAP mini LTE kit is a small weatherproof wireless access point with a built-in cellular modem that provides 2G, 3G, and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38, and 40.

Connect to the LtAP mini's built-in 802.11b/g/n wireless and use your phone or any other wireless device to access the LTE network. For wired devices, the LtAP mini LTE offers one 10/100 Ethernet LAN connection. The RS232 serial port provides access to the console for debugging.

The LtAP small has a customized casing with a wall mounting kit, two SIM slots for alternating between cellular providers, and inbuilt GPS support, making it ideal for usage in moving vehicles such as cars, buses, or trains. An external GPS antenna can be ordered separately (not included, product code ACGPSA).

The LTE card is connected to two internal antennae via u.FL connectors, which may be unplugged and replaced with your own external LTE antenna for greater coverage. There are numerous ways to power the unit: PoE-in 9-30 V through Ethernet connection, DC jack, and microUSB.

Use the built-in GPS module to track your vehicle's whereabouts in real time; we've even included a simple tracking application example in the RouterOS instructions to help you get started developing your platform.

LtAP small LTE kit - MikroTik Routers and Wireless

Specifications

Details
Product code	RB912R-2nD-LTm & R11e-LTE
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	139 x 77 x 28,5 mm
License level	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 70°C
Suggested price

Powering

Details
MicroUSB input Voltage	5-5 V
PoE in	802.3af/at
PoE in input Voltage	12-57 V
Number of DC inputs	3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage	8-30 V
Max power consumption	9 W

Mobile

Details
2G Category	Class12
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz)

Wireless

Details
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz standards	802.11b/g/n
Wi-Fi generation	4
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz chip model	QCA9531

Ethernet

Details
10/100 Ethernet ports	1

Peripherals

Details
Number of SIM slots	2 Modem (Mini SIM)
MiniPCI-e slots	1
Serial port	RS232
Number of USB ports	1
USB Power Reset	Yes
USB slot type	microUSB type AB
Max USB current (A)	1

Other

Details
Mode button	Yes

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

MikroTik LtAP mini LTE kit
