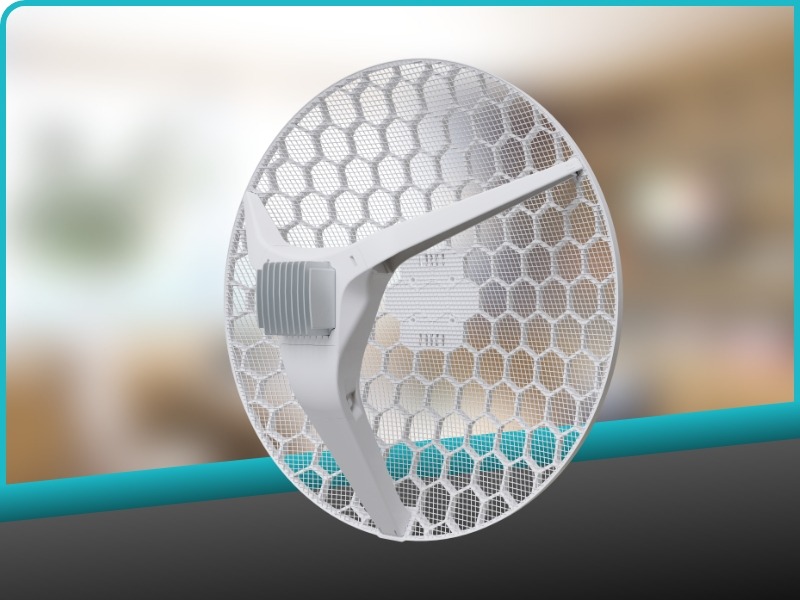

Do you require a dependable and robust long-distance connection that never fails? With its dual-band functionality, the new LHG XL 52 ac will do just that. You may easily configure the 5 GHz channel as the primary connection, with speeds up to 600 Mbps, and the 2.4 GHz channel as an automatic backup connection, with speeds up to 260 Mbps.
The powerful 27 dBi 5 GHz / 18 dBi 2.4 GHz antenna will provide a connection with up to 40 km of link distance. The grid design provides wind protection and can tolerate temperatures ranging from -40 C° to +70 C°. The antenna element is incorporated within the wireless unit, thus there is no cable loss. This gadget can handle heavy loads because of its powerful quad-core CPU and 256 MB of RAM. It contains a Gigabit Ethernet port, and an SFP port, and is 802.3af/at compatible - meaning it can be powered by smart switches!
Details | |
---|---|
Product code | RBLHGG-5HPacD2HPnD-XL |
Architecture | ARM 32bit |
CPU | IPQ-4018 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Dimensions | Ø 550 x 291 mm |
License level | 3 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C to 70°C |
Suggested price |
Details | |
---|---|
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 18 W |
Max power consumption without attachments | 16 W |
Details | |
---|---|
AC speed | AC1200 |
Wi-Fi generation | 5 |
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Details | |
---|---|
SFP ports | 1 |
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 29 | -100 |
11MBit/s | 29 | -93 |
6MBit/s | 31 | -96 |
54MBit/s | 27 | -80 |
MCS0 | 31 | -96 |
MCS7 | 26 | -75 |
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 30 | -96 |
54MBit/s | 26 | -80 |
MCS0 | 30 | -96 |
MCS7 | 25 | -75 |
MCS9 | 23 | -70 |
