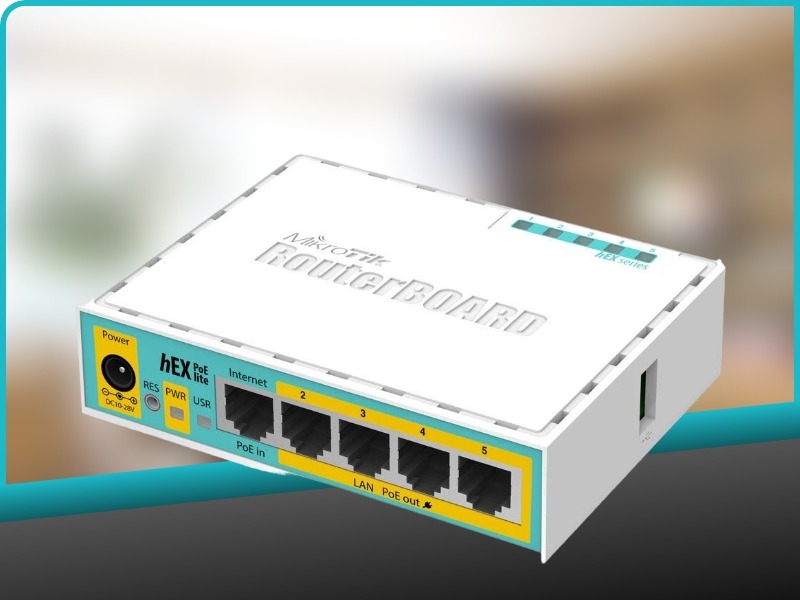

It is inexpensive, tiny, and simple to operate, but it also has a very powerful 800MHz CPU capable of all the sophisticated setups that RouterOS allows. There are fewer power adapters and cords to worry about! The maximum current per port is 1A, and the Ethernet ports are insulated.
It also supports passive PoE input and output (802.3af/at). Ethernet ports 2-5 can supply power to additional PoE capable devices using the same voltage as the unit. There are fewer power adapters and cords to worry about! If 48-57 input voltage is utilized, it can power at/af mode B (4,5+)(7,8-) compatible devices.
Details | |
---|---|
Product code | RB960PGS |
Architecture | MIPSBE |
CPU | QCA9557 |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C to 60°C |
Suggested price |
Details | |
---|---|
PoE in | Passive PoE |
PoE in input Voltage | 12-57 V |
PoE out | 802.3af/at |
PoE-out ports | Ether2-Ether5 |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max out per port output (input > 30 V) | 450 mA |
Max out per port output (input < 30 V) | 1 A |
Max total out (A) | 2 A |
Max power consumption | 54 W |
Max power consumption without attachments | 6 W |
Details | |
---|---|
10/100/1000 Ethernet ports | 5 |
Details | |
---|---|
SFP ports | 1 |
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
