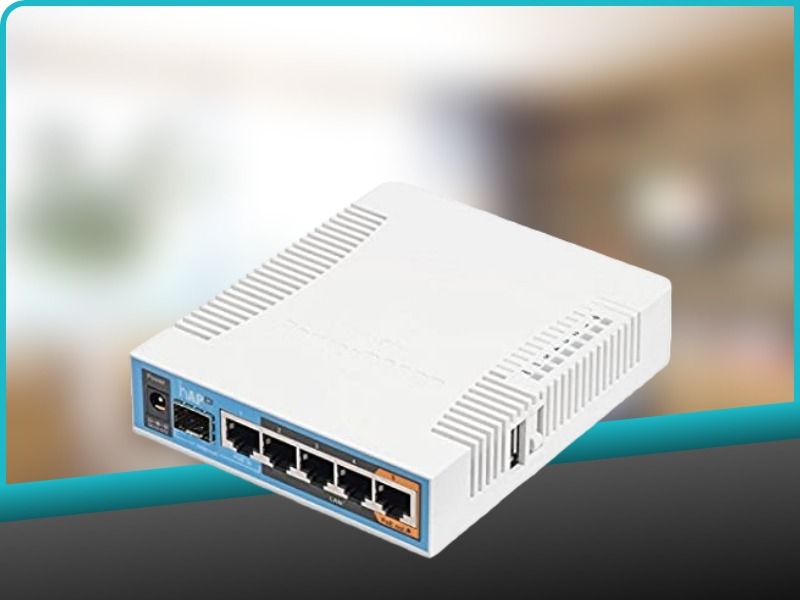

MikroTik hAP ac

MikroTik hAP ac

The hAP ac is our most versatile wireless device for the home or office. It is a dual-band device with Gigabit ports that enables full 802.11ac technology speed while being compatible with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.

The omnidirectional antennae allow the hAP ac to be mounted in any location, and the high-power emitter ensures good coverage for mobile devices in your house, business, or public venue.

A USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port to power other RouterBOARD devices without the need for an extra power adapter, and an SFP cage for connecting active or passive optical network modules are further useful features.

MikroTik hAP ac
There are two options available.
  • The RB962UiGS-5HacT2HnT-US (USA) is factory locked to the frequencies 2412-2462MHz, 5170-5250MHz, and 5725-5835MHz. This lock cannot be broken.
  • The RB962UiGS-5HacT2HnT (International) frequency range is 2412-2484MHz and 5150MHz-5875MHz (Specific frequency range can be limited by country regulations).

    • MikroTik Routers and Wireless – Products: hAP ac

Specifications

Details
Product code RB962UiGS-5HacT2HnT
Architecture MIPSBE
CPU QCA9558
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 114 x 137 x 29mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price

Powering

Details
PoE in Passive PoE
PoE in input Voltage 11-57 V
PoE out Passive PoE
PoE-out ports Ether5
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 11-57 V
Max out per port output (input < 30 V) 700 mA
Max total out (A) 700 mA
Max power consumption 17 W

Wireless

Details
AC speed AC1750
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 5
Wireless 2.4 GHz Max data rate 450 Mbit/s
Wireless 5 GHz Max data rate 1300 Mbit/s
Wireless 2.4 GHz number of chains 3
Wireless 2.4 GHz chip model QCA9558
Wireless 5 GHz number of chains 3
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9880

Ethernet

Details
10/100/1000 Ethernet ports 5

Fiber

Details
SFP ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 29 -100
11MBit/s 29 -94
6MBit/s 29 -96
54MBit/s 26 -81
MCS0 29 -96
MCS7 25 -77

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -81
MCS0 28 -96
MCS7 24 -77
MCS9 21 -72
