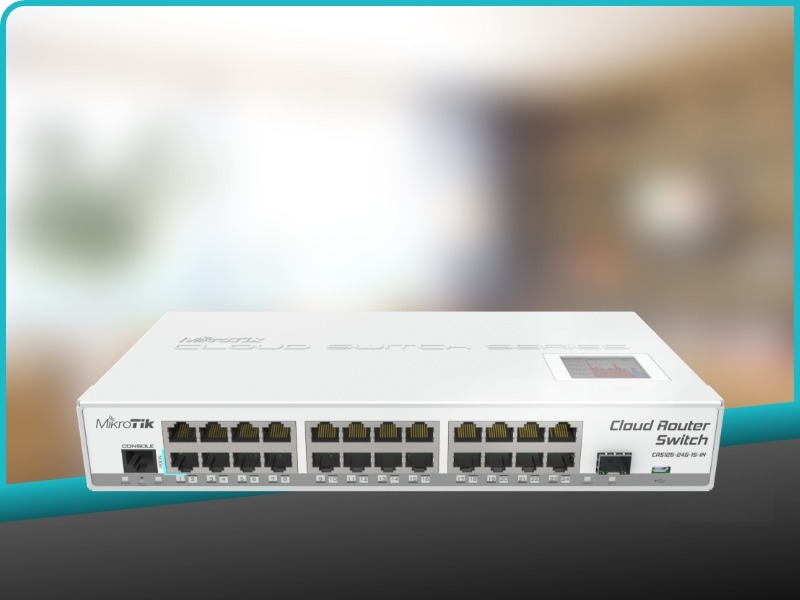

Our latest Smart Switch series is called Cloud Router Switch. It combines the best characteristics of a fully functional router and a Layer 3 switch, and it runs RouterOS. All Switch configuration settings are available in a separate Switch menu, although ports can be withdrawn from the switch setup and used for routing reasons if desired.
| Details | |
|---|---|
| Product code | CRS125-24G-1S-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 285x145x45mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -30°C to 60°C |
| Suggested price | |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-28 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 15 W |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
| Details | |
|---|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
